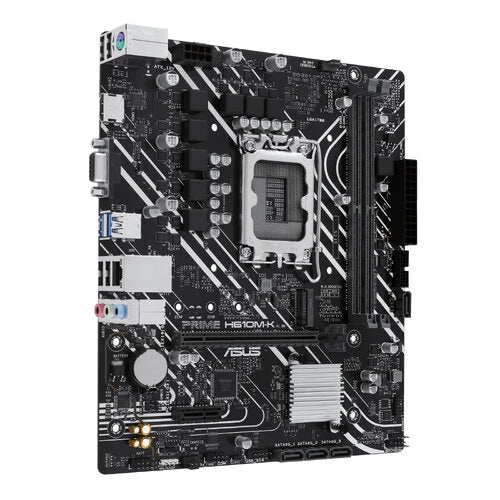

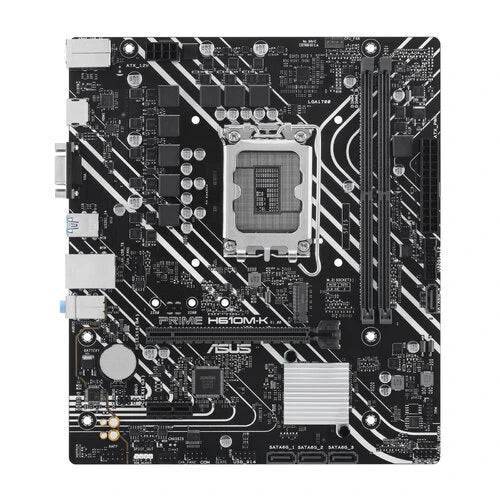

MB ASUS H610 INTEL S-1700 14A GEN/2X DDR5 5600/HDMI/D-SUB/M.2/2X USB3.2/MICRO ATX/GAMA BASICA

CPU INTEL® SOCKET LGA1700 FOR INTEL® CORE™ 14TH AND 13TH GEN PROCESSORS, INTEL® CORE™ 12TH GEN, PENTIUM® GOLD AND CELERON® PROCESSORS SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET INTEL® H610 CHIPSET MEMORY 2 X DIMM SLOTS, MAX. 96GB, DDR5 5600/5400/5200/5000/4800 NON-ECC, UN-BUFFERED MEMORY DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE XMP ACTUAL MEMORY DATA RATE DEPENDS ON THE CPU TYPES AND DRAM MODULES, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR THE MEMORY QVL QUALIFIED VENDORS LISTS. GRAPHICS 1 X DISPLAYPORT 1 X VGA PORT 1 X HDMITM PORT GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. SUPPORTS MAX. 4K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4. SUPPORTS 4K@60HZ AS SPECIFIED IN HDMITM2.1. EXPANSION SLOTS INTEL® CORETM PROCESSORS 14TH AND 13TH AND 12TH GEN 1 X PCIE 4.0 X16 SLOT INTEL® H610 CHIPSET 1 X PCIE 3.0 X1 SLOT STORAGE TOTAL SUPPORTS 2 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS INTEL® CORETM PROCESSORS 14TH AND 13TH AND 12TH GEN INTEL® H610 CHIPSET M.2_1 SLOT KEY M, TYPE 2242/2260/2280 SUPPORTS PCIE 3.0 X4 MODE M.2_2 SLOT KEY M, TYPE 2242/2260/2280 SUPPORTS PCIE 3.0 X2 MODE 4 X SATA 6GB/S PORTS ETHERNET 1 X REALTEK 1GB ETHERNET USB REAR USB TOTAL 4 PORTS 2 X USB 3.2 GEN 1 PORTS 2 X TYPE-A 2 X USB 2.0 PORTS 2 X TYPE-A FRONT USB TOTAL 5 PORTS 1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 3 USB 2.0 PORTS AUDIO REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC - SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING - SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK AUDIO FEATURES - AUDIO SHIELDING - PREMIUM AUDIO CAPACITORS - DEDICATED AUDIO PCB LAYERS A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT. BACK PANEL I/O PORTS 2 X USB 3.2 GEN 15G PORTS 2 X TYPE-A 2 X USB 2.0 PORTS 2 X TYPE-A 1 X DISPLAYPORT 1 X VGA PORT 1 X HDMITM PORT 1 X REALTEK 1GB ETHERNET PORT 3 X AUDIO JACKS 1 X PS/2 KEYBOARD PURPLE PORT 1 X PS/2 MOUSE GREEN PORT INTERNAL I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER 2 X 4-PIN CHASSIS FAN HEADERS POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 1 X 8-PIN 12V POWER CONNECTOR STORAGE RELATED 2 X M.2 SLOTS KEY M 4 X SATA 6GB/S PORTS USB 1 X USB 3.2 GEN 15G HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 3 USB 2.0 PORTS MISCELLANEOUS 1 X AURA RGB HEADER 3 X ADDRESSABLE GEN 2 HEADERS 1 X CLEAR CMOS HEADER 1 X FRONT PANEL AUDIO HEADER AAFP 1 X COM PORT HEADER 1 X S/PDIF OUT HEADER 1 X SPEAKER HEADER 1 X SPI TPM HEADER 14-1PIN 1 X 10-1 PIN SYSTEM PANEL HEADER SPECIAL FEATURES ASUS 5X PROTECTION III - DIGI VRM - LANGUARD - OVERVOLTAGE PROTECTION - SAFESLOT CORE - STAINLESS-STEEL BACK I/O ASUS Q-DESIGN - Q-DIMM - Q-SLOT - Q-LED CORE ASUS THERMAL SOLUTION - ALUMINUM HEATSINK DESIGN AURA SYNC - AURA RGB HEADER - ADDRESSABLE GEN 2 RGB HEADERS SOFTWARE FEATURES ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AURA CREATOR - AURA SYNC - FAN XPERT 2 - TWO-WAY AI NOISE CANCELLATION AI SUITE 3 - PERFORMANCE AND POWER SAVING UTILITY EPU DIGI VRM ASUS CPU-Z NORTON 360 DELUXE 60 DAYS FREE TRIAL WINRAR UEFI BIOS ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE BIOS 128 MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 2 X SATA 6GB/S CABLES MISCELLANEOUS 1 X I/O SHIELD 1 X M.2 SSD SCREW PACKAGE DOCUMENTATION 1 X USER GUIDE OPERATING SYSTEM WINDOWS® 11 64-BIT, WINDOWS® 10 64-BIT FORM FACTOR MATX FORM FACTOR 9.6 INCH X 8.3 INCH 24.4 CM X 21.1 CM
